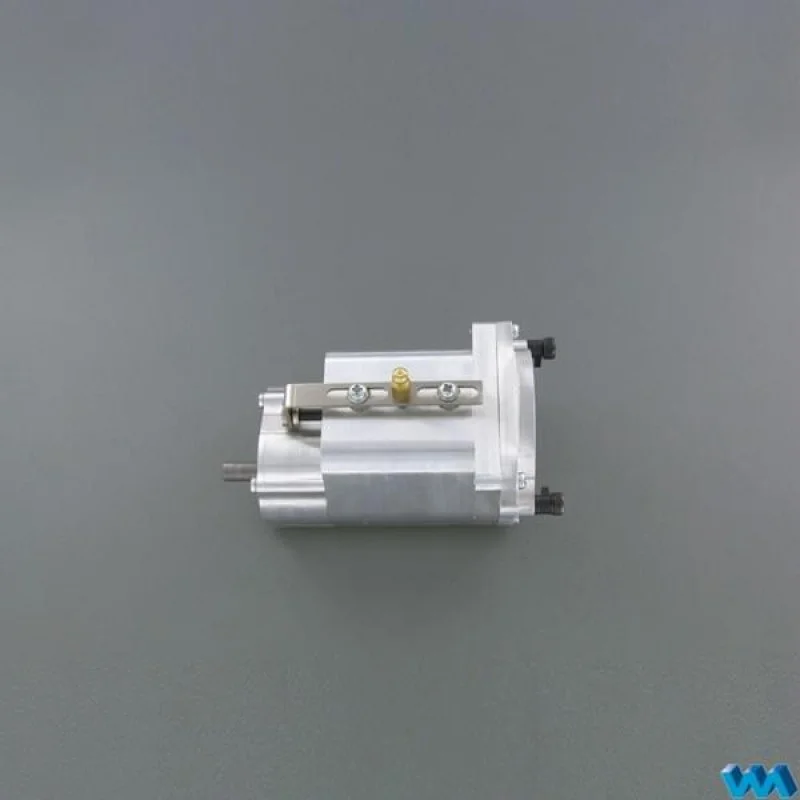

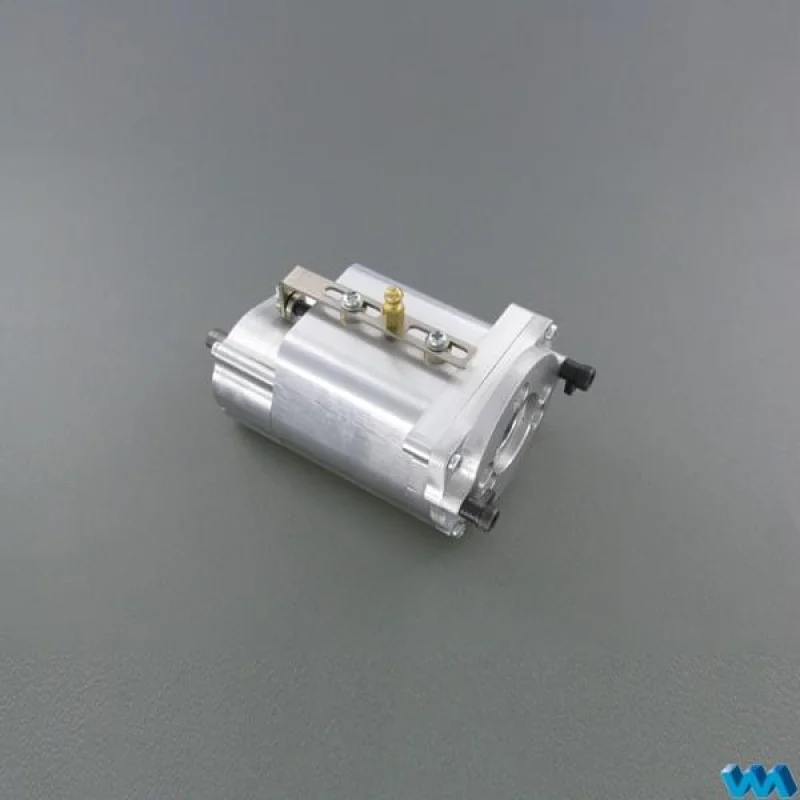

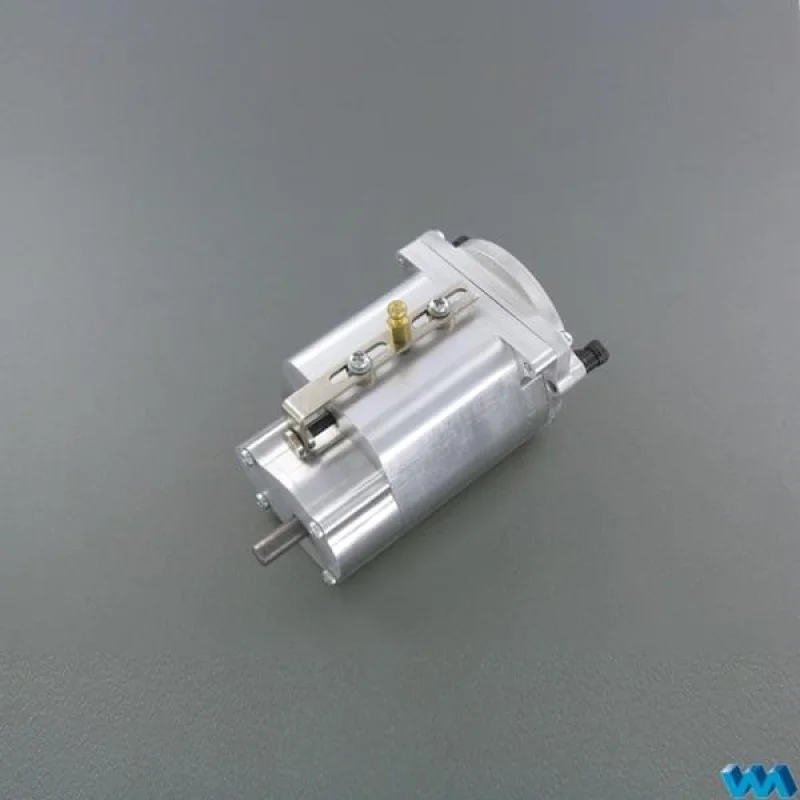

3-gear manual, housing from aluminum, pinio`s from stee, hardened, ball bearing sextuple, suitable for scale 1:16 – 1:10, speed reduction: 1. gear 22,65 : 1 , 2. gear 11,32 : 1 , 3. gear 5,66 : 1 , measure: length without motor 65mm, width 46,6mm, height 39,4mm, diameter from shaft output 5mm, the gear is mounted, the motor and the adaptor is to fix with 2 clamps from outside at the housing, it will be connected with a servo, the max. initial speed is 6.500 U/min .
Proper equipment ( not included) : holder with item code: 251110 and 251120, flange with item code: 251135, 251130, 251140, 251150 and 251160
Item code: 251100
![]()
| Afmetingen | |
| Schaal | 1/14 |
